PRL High Volume Air Intake System FK8

In stock in overseas warehouse (dispatch within 3-7 days)

Regular Price: £525.00

£485.00

Quick Overview

Suitable for FK8 Civic Type-R Turbo

* Required Fields

Regular Price: £525.00

£485.00


Be the first to review this product

Details

Important Notes:

  • NO CALIBRATION REQUIRED FOR STREET MAF HOUSING
  • RACE MAF-SPECIFIC CALIBRATION IS REQUIRED FOR RACE MAF HOUSING



Technical Notes:

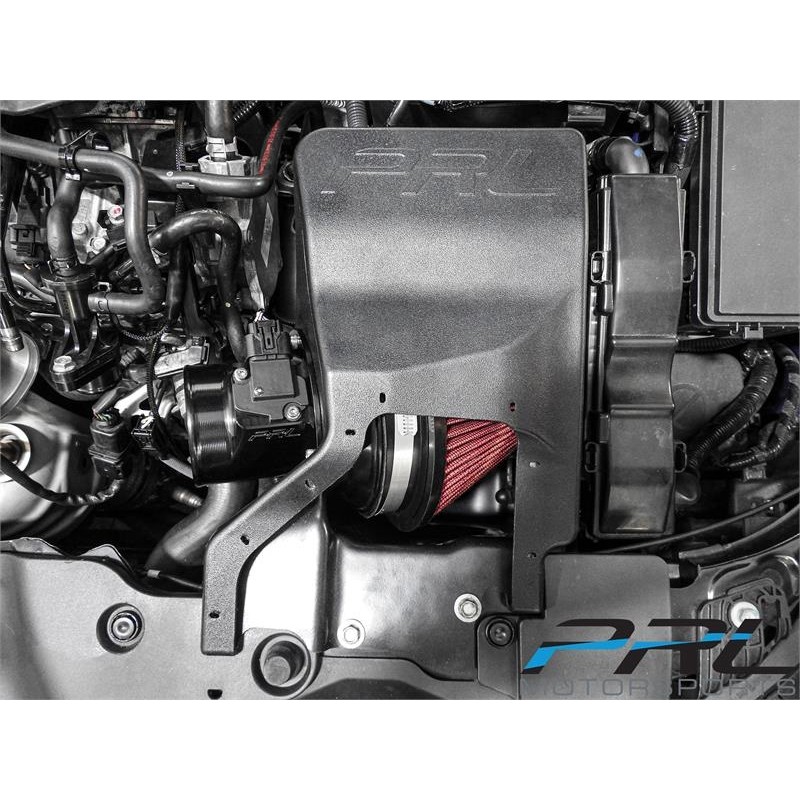

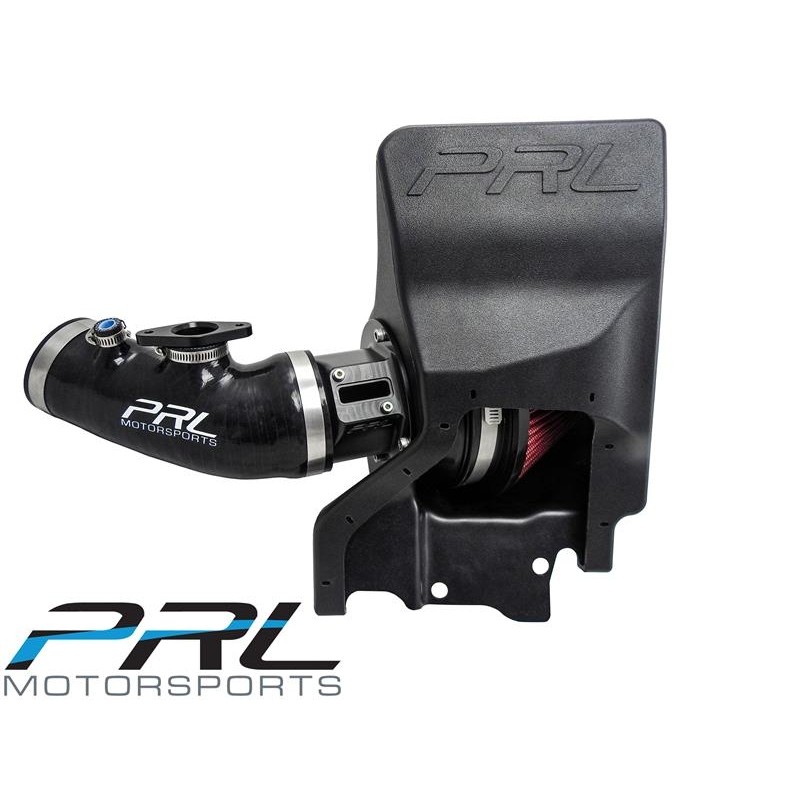

Our FK8 Civic Type-R High Volume Intake system utilizes a 6" cone filter and billet 2-piece MAF housing with velocity stack(s) to allow maximum airflow while delivering proper fuel trims. The HDPE rotomolded air box utilizes the factory air duct and seal for optimal airflow and heat-soak reduction. Custom molded 4-ply silicone allows for all components to be safely attached without obstructing airflow.

The Race MAF housing option is the largest MAF housing on the market, rated at 600+ horsepower, and offers a 47% increase in airflow volume over the factory MAF housing or "Street" HVI MAF. Our engineers were able to profile the volute and locate the MAF sensor flange in the optimal location to help keep fuel trims extremely stable. This will require a calibration/MAF scaling and is more-so intended for customers looking to make over 450 horsepower.

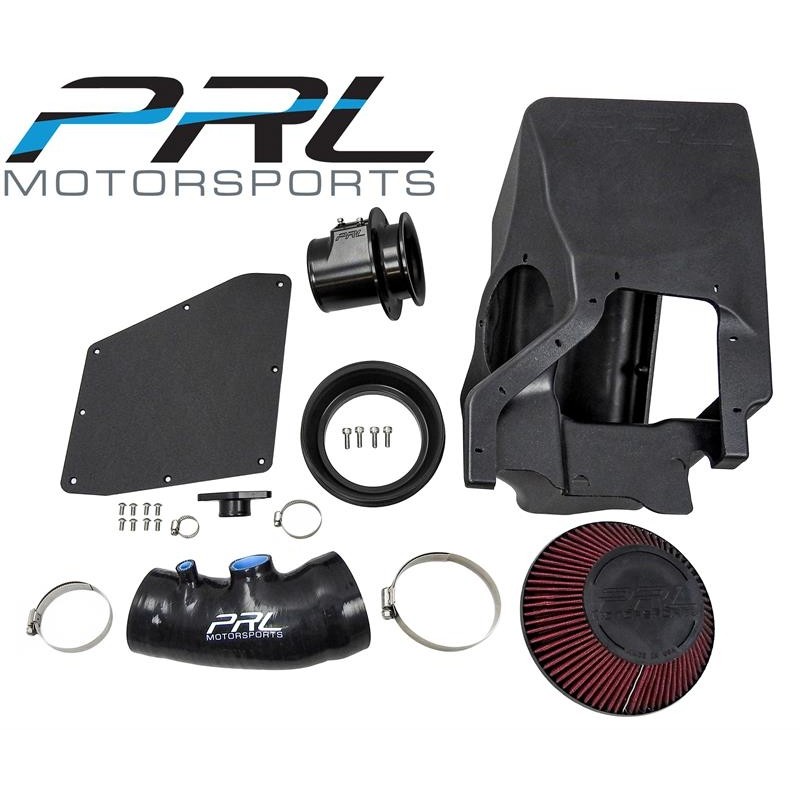

Kit Includes:

  • (1) 4-Ply Silicone Intake Hose
  • (1) Injection Molded Evap Fitting
  • (1) Two-Piece MAF Housing
  • (1) Rotomold Air Box
  • (1) 6" Air Filter
  • (4) Stainless Steel Breeze Lined Clamps
  • Stainless hardware
  • Wire Loom
  • Dress-Up Hardware Kit


Street MAF Testing Results:


All testing was performed on the same day with a rather mild 55 degree Fahrenheit day and moderate humidity. We started all single dyno pulls at 174 degrees, while continuous (back-to-back) dyno pulls start at 174 degrees and end around 197 degrees. For our first comparison we tested the factory intake system on KTuner's stock equivalent ECU map versus our High Volume Intake System on KTuner's stock equivalent ECU map for an apples-to-apples comparison. Run 2 was the coolest (174 degree starting temp) for both setups. We saw an 11 - 12 horsepower peak gain and 32 horsepower gain throughout the mid-range over the factory intake system.

Additional Information

SKU PRL-HCR-INT-HVI
Stock Traffic light status amber
Brand No
Color White
