PRL Drop-In Turbo Upgrade FK8 Type-R

Call us to confirm stock

Regular Price: £2,600.00

£2,340.00

Quick Overview

Suitable for FK8 Civic Type-R

OR

Details

Fitment Notes:

FITS ALL 2017+ HONDA CIVIC TYPE-R MODELS INCLUDING RHD, INTERNATIONAL MODELS, ETC


Please Read Before Ordering:

DOES REQUIRE RE-MAP

100% DROP-IN, FACTORY LOCATION TURBO CHARGER UPGRADE


Technical Notes:

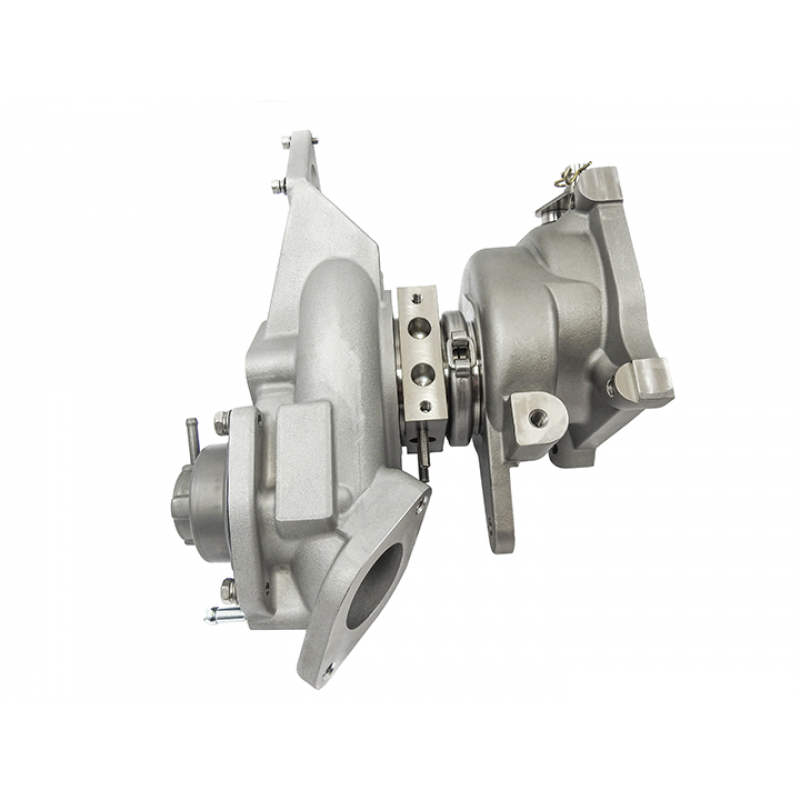

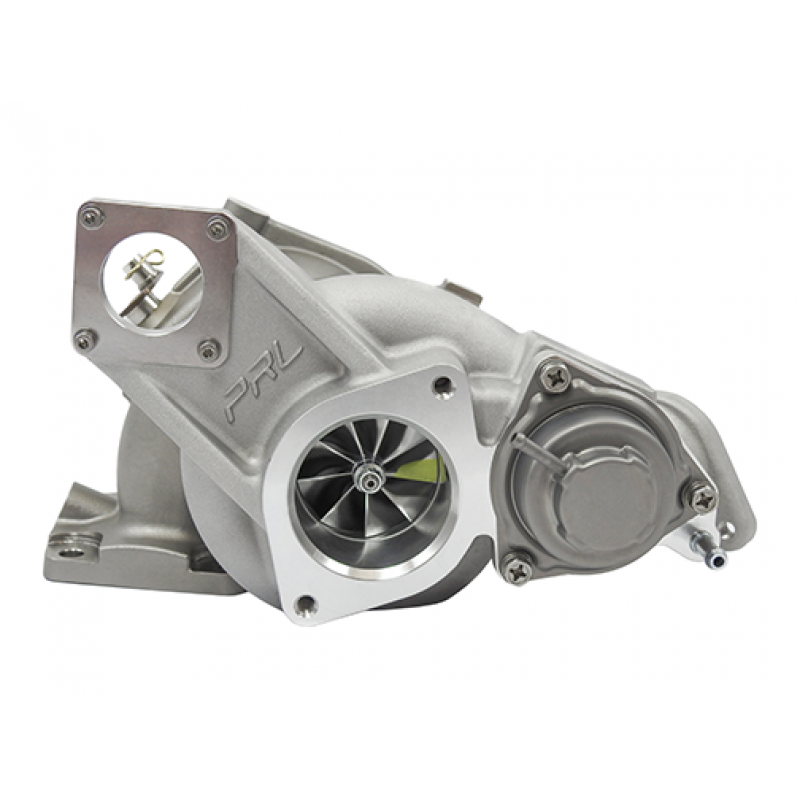

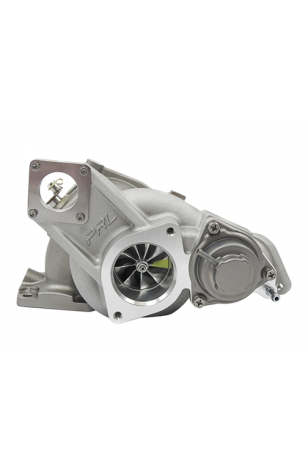

The PRL Motorsports P600 Drop-In Turbocharger Upgrade for Turbo FK8 Civic Type-R platform offers 600 horsepower capabilities for Honda's 2.0L Turbo K20C Engines without sacrificing spool. A billet 304 stainless steel, dual ceramic ball bearing CHRA was implemented for reduced weight and improved durability. Factory oil and coolant lines are retained, as well as the factory bypass valve and wastegate actuator. Increased cooling capacity has been provided by the CHRA's larger water jacket.


Our High Efficiency compressor wheel is significantly taller than most billet compressor wheel upgrades and features the latest technology in aerodynamics (tapered tip exducer, cutback design on blade top edge) for optimal spool and power. This High Efficiency Turbine Wheel also features the latest technology in aerodynamics for optimal spool and power.


Testing Data:

http://prlarmy.com/Blog/final-p600-dyno-testing-accord-type-r/

http://prlarmy.com/Blog/prl-motorsports-p600-honda-civic-type-r-fk8-drop-in-turbocharger-upgrade-development-part-5/


Turbocharger Specs:

Billet 304 Stainless Steel, Dual Ceramic Ball Bearing CHRA

Cast Aluminum, Stock Location Compressor Housing

Cast 304 Stainless Steel Turbine Housing

High Efficiency Point-Milled 9-Blade Billet 7075 Aluminum Compressor Wheel (54mm Inducer, 67mm Exducer)

High Efficiency Inconel 713C 9-Blade Turbine Wheel (54mm Inducer, 49mm Exducer)


Kit Includes:

P600 Turbocharger Assembly

Premium Mounting Hardware Kit (Studs, Nuts & Bolts for Turbocharger-to-Cylinder Head &Turbocharger-to-Downpipe Connections)

Gasket Kit (Turbine Inlet, Turbine Outlet, Compressor Inlet, Oil Feed, Oil Return, Coolant Line)

Oil Feed Filter/O-Ring Assembly

Oil Feed Crush Washers

Additional Information

SKU HCR-TK-P600
Stock Traffic light status red
Brand No
Color White
