EXEDY racing clutches with organic friction materials utilize only premium materials to provide maximum resistance to slippage and burst. EXEDY organic clutches can also handle modified engines due to the increased clamp loads. Drivability with EXEDY organic clutches is similar to that of stock clutches. Pedal efforts will be slightly higher due to the higher clamp loads. As with all EXEDY clutch discs, EXEDY organic clutches feature high capacity spring center dampers designed to reduce drive train shock and impact.
Organic Disc
Asbestos free friction facing is used, which has high heat resistance and high burst strength characteristics. No steel back is required which can cause high RPM "lock-out" and/or synchro damage. Superior in shift operations and half-engagement fee. This clutch disc is recommended for any sports/performance use.
Clutch Cover
These clutch covers are designed to achieve a clamping load that is approximately 40% higher than the genuine part allowing a higher torque transmitting capacity. Ductile material is used for all pressure plates and high burst strength can be achieved in all temperature ranges.

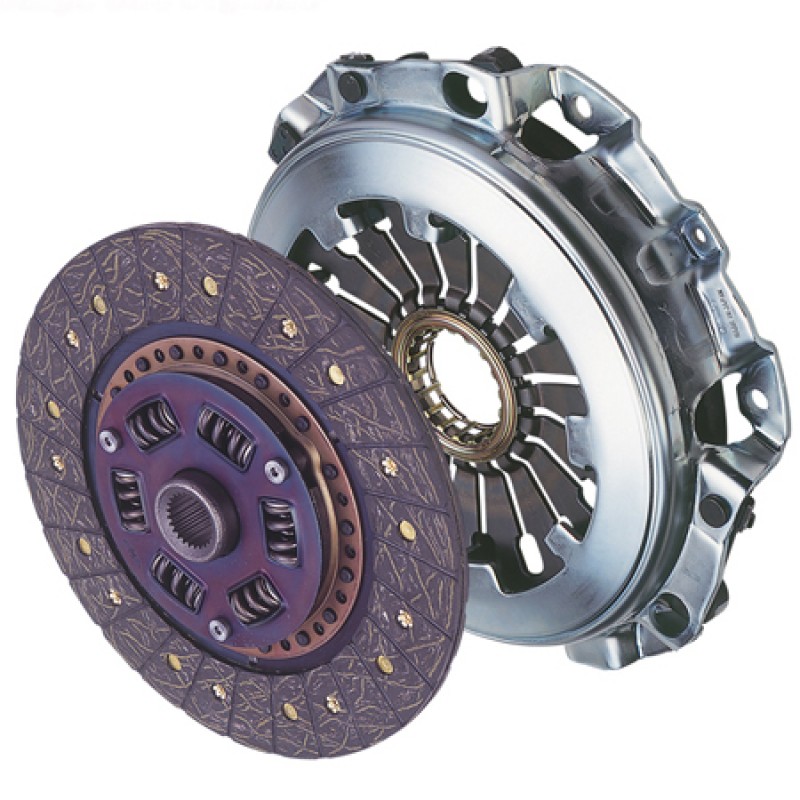

Consists of:
- EXEDY Racing Pressure Plate
- EXEDY Racing Full Organic Clutch Disc
- EXEDY Release Bearing
Part Number: NK01H472
Clutch Type: Stage 1 Organic
Friction Facing: Organic
Disc Diameter (mm): 240
Sprung Centre: Yes
Torque at Flywheel: 290 lb-ft / 390 Nm
Torque at Wheels: 240 lb-ft / 320 Nm
Organic Disc
Asbestos free friction facing is used, which has high heat resistance and high burst strength characteristics. No steel back is required which can cause high RPM "lock-out" and/or synchro damage. Superior in shift operations and half-engagement fee. This clutch disc is recommended for any sports/performance use.
Clutch Cover
These clutch covers are designed to achieve a clamping load that is approximately 40% higher than the genuine part allowing a higher torque transmitting capacity. Ductile material is used for all pressure plates and high burst strength can be achieved in all temperature ranges.
Consists of:
- EXEDY Racing Pressure Plate
- EXEDY Racing Full Organic Clutch Disc
- EXEDY Release Bearing
Part Number: NK01H472
Clutch Type: Stage 1 Organic
Friction Facing: Organic
Disc Diameter (mm): 240
Sprung Centre: Yes
Torque at Flywheel: 290 lb-ft / 390 Nm
Torque at Wheels: 240 lb-ft / 320 Nm
Additional Information
SKU | NK04H016 |
---|---|
Stock Traffic light status | amber |
Brand | Exedy |
Color | No |
